Steel Buildings in Europe Verification Problem Example
Partial Depth End Plate – Beam to Column Web – Tying Resistance
- Example
- Related
Problem Statement
This document presents a comparative study between the published Joints in Steel Construction: Simple Joints to Eurocode 3 and the results generated by SDS2 version 2025.01 connection software for Example 2 – Partial depth end plate – Beam to column web-Tying resistance. The central problem statement is to verify the available tying strength of an end plate connection between a beam and a supporting column web. This connection involves a 406x178x74 UKB beam and a 305x305x137 UKC supporting column. Tying reaction on the beam to end plate connection is 175kN with both the beam and the column using Grade S275 steel. The connection uses M20 8.8 bolts and grade S275 steel for the end plate. The connection detail is shown in Figure 1.

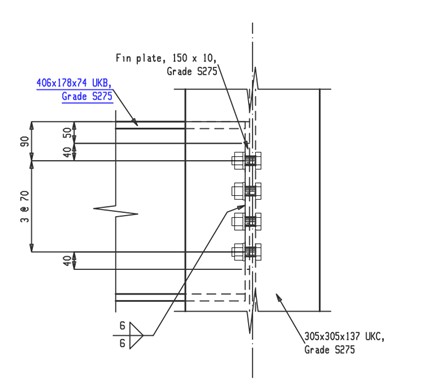

Figure 1. Example 1 – Partial depth end plate – Beam to column web – Tying resistance
Connection design report output from SDS2 for this connection:
Note: To view the 3D model (U3D) of the structural joint in the PDF files, open the PDF using Bluebeam or Adobe Acrobat Reader.
Validation Method
The connection as shown in the Simple Joints to Eurocode 3, section 4.6, page 44, Example 2 – Partial depth end plate – Beam to column web – Tying resistance (see reference 1) was modeled in SDS2 and a connection design report was generated.
The core of this report features a comparison table for each connection limit state, displaying the calculated capacities from both SDS2 and the cited document. The order of the limit state table generally mirrors the sequence in which it was presented in the Simple Joints to Eurocode 3 example problem. This table also highlights the percent difference (% Δ) between these calculated values, providing a clear measure of any discrepancy, if any.
To further enhance understanding, this report includes relevant notes that discuss any differences or assumptions made during the calculation process. This comparative study's goal is to evaluate the precision and efficiency of the SDS2 connection design software in contrast to the published Eurocode 3 UK design example and serves as a guide for better understanding and application of these design calculations.
Comparison
A comparison of the limit state checks is presented in Table 1. The limit state checks and calculated values aligned well between the published Eurocode 3 UK design example document and the calculation generated by SDS2. The minor differences in calculated values, except where noted, were a result of rounding differences.
Other minor differences are discussed in the comparison table notes.
Table 1. Capacity comparison table for Eurocode 3 UK |
||||
Limit state on partial depth end plate, tying check |
SDS2 Capacity |
SCI Capacity |
%Δ |
Notes |
Tying resistance-plate and bolts |
380.6 kN |
381.0 kN |
-0.1% |
|
Tying resistance-supported beam web |
1026.9 kN |
1027.0 kN |
0.0% |
|
Tying resistance-resistance of supporting column web |
405.4 kN |
405.0 kN |
0.1% |
|
