Steel Buildings in Europe Verification Problem Example
Fin Plates – Beam to Beam Right Beam Connection
- Example
- Related
Problem Statement
This document presents a comparative study between the published Joints in Steel Construction: Simple Joints to Eurocode 3 and the results generated by SDS2 version 2025.01 connection software for the right beam connection of Example 1 – Fin plates – Beam to beam. The central problem statement is to verify the available strength of a fin plate connection between a beam and a supporting beam web. This connection involves a 533x210x92 UKB beam and a 610x229x140 UKB supporting beam. Shear reaction on the beam to fin plate connection is 200kN with both beams using Grade S275 steel. The connection uses M20 8.8 bolts and grade S275 steel for the fin plate. The connection detail is shown in Figure 1.

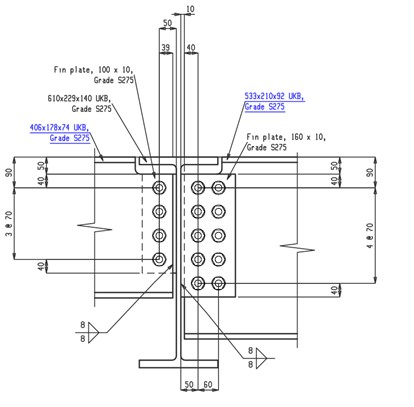

Figure 1. Example 1 – Fin plate – Beam to beam
Connection design report output from SDS2 for this connection:
Note: To view the 3D model (U3D) of the structural joint in the PDF files, open the PDF using Bluebeam or Adobe Acrobat Reader.
Validation Method
The connection as shown in the Simple Joints to Eurocode 3, section 5.6 page 137, Example 1 – Fin plates – Beam to beam (see reference 1) was modeled in SDS2 and a connection design report was generated.
The core of this report features a comparison table for each connection limit state, displaying the calculated capacities from both SDS2 and the cited document. The order of the limit state table generally mirrors the sequence in which it was presented in the Simple Joints to Eurocode 3 example problem. This table also highlights the percent difference (% Δ) between these calculated values, providing a clear measure of any discrepancy, if any.
To further enhance understanding, this report includes relevant notes that discuss any differences or assumptions made during the calculation process. This comparative study's goal is to evaluate the precision and efficiency of the SDS2 connection design software in contrast to the published Eurocode 3 UK design example and serves as a guide for better understanding and application of these design calculations.
Comparison
A comparison of the limit state checks is presented in Table 1. The limit state checks and calculated values aligned well between the published Eurocode 3 UK design example document and the calculation generated by SDS2. The minor differences in calculated values, except where noted, were a result of rounding differences.
Other minor differences are discussed in the comparison table notes.
Table 1. Capacity comparison table for Eurocode 3 UK |
||||
Limit state on right fin plate connection |
SDS2 Capacity |
SCI Capacity |
%Δ |
Notes |
---|---|---|---|---|
Supported beam-bolt shear |
94.0 kN / bolt |
94.0 kN / bolt |
0.0% |
|
Supported beam-bearing on fin plate |
571.1 kN |
574.0 kN |
-0.5% |
|
Supported beam-bearing on web |
561.2 kN |
565.0 kN |
-0.7% |
|
Supported beam-fin gross shear |
450.1 kN |
450.0 kN |
0.0% |
|
Connection-net shear rupture |
538.0 kN |
538.0 kN |
0.0% |
|
Supported beam-fin block shear |
493.5 kN |
494.0 kN |
-0.1% |
|
Supported beam-fin bending & LTB |
738.3 kN |
743.0 kN |
-0.6% |
|
Supported beam-gross web shear |
804.6 kN |
794.0 kN |
1.3% |
|
Supported beam-net web shear |
893.0 kN |
837.0 kN |
6.3% |
|
Supported beam-web block shear |
480.5 kN |
481.0 kN |
-0.1% |
|
Supported beam-notched web shear |
164.3 kN-m |
164.0 kN-m |
0.2% |
|
Supported beam-resistance at notch |
164.3 kN-m |
164.0 kN-m |
0.2% |
|
Supported beam-stability at notch |
|
|
|
|
Supporting member-welds |
|
|
|
|
Supporting beam-local shear |
748.8 kN |
603.0 kN |
16.4% |
Table Notes
Note 1: SDS2 uses a ‘z’ value (Distance from the weld to the centroid of the bolt group) of 80.5mm and the example in Simple Joints to Eurocode uses 80mm.
Note 2: When calculating the area of the coped beam, SDS2 includes the area of the fillet between the beam flange and web. SCI calculates the area assuming rectangular cross section elements.
Note 3: These checks are performed in both SDS2 & Simple Joints to Eurocode but no capacity is calculated.
Note 4: SDS2 calculates the shear area based on this member's shear tab depth. Simple Joints to Eurocode calculates the shear area based on the smaller shear tab depth for the two fin plates connecting at this location.
